Industrial Lighting
LED High Bay Eco Premium Series
Model LHB-A Series
Series Eco Premium Series

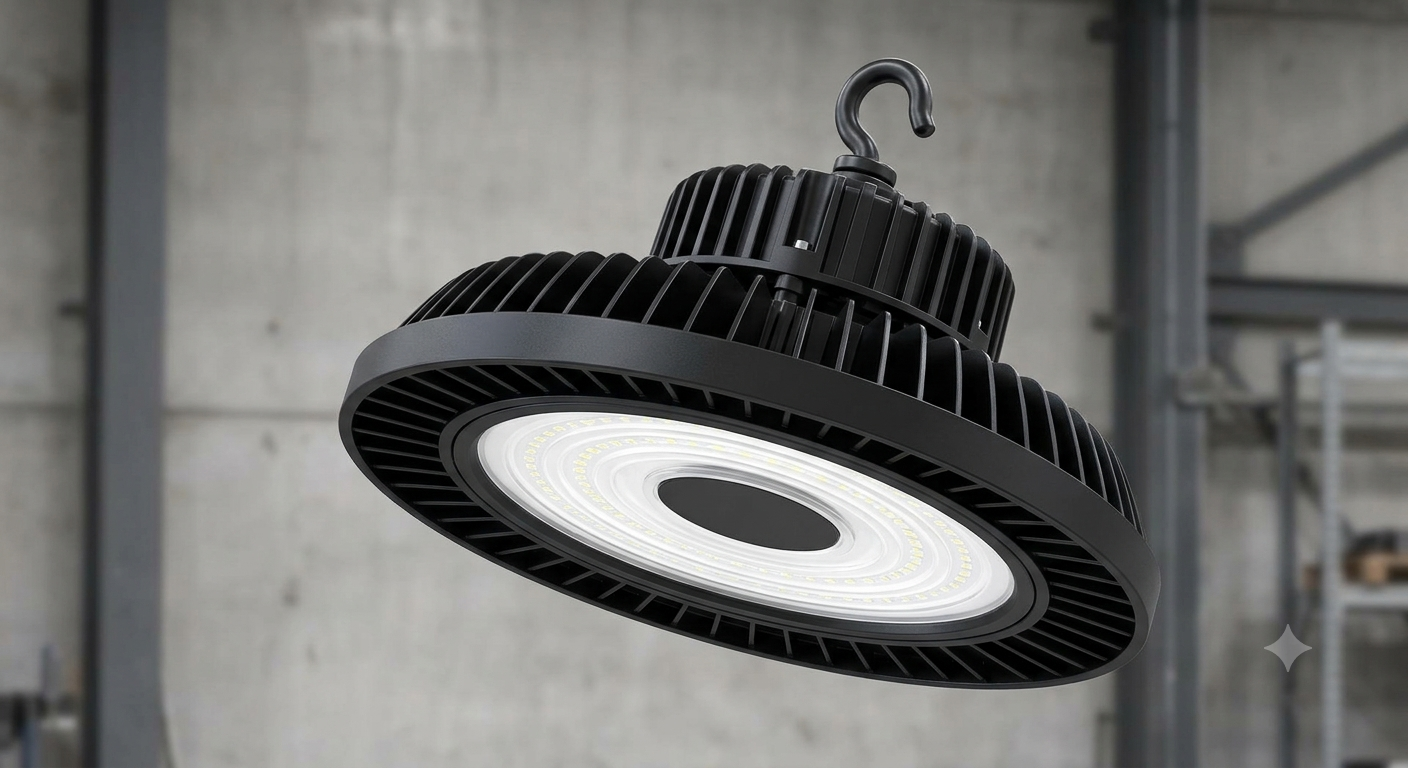

Industrial IP65 high-bay lighting delivering up to 46,200 lumens.
Eco Premium Series
Product Overview
Efficient Illumination for High-Ceiling Environments
An efficient industrial high-bay luminaire for warehouses, shopping areas and high-ceiling environments. The robust aluminium body delivers reliable thermal performance and up to 165 lm/W efficacy.
Suitable Applications
Architectural
Industrial
Shopping Mall
Warehouse
A closer look
Light. Form. Detail.
Key Features
The details that make the difference.
-
01
Up to 165 lm/W efficiency
-
02
IP65 and IK08 protection
-
03
60,000-hour lifespan
-
04
Hook-type mounting
Performance at a glance
- Wattage
- 100W / 150W / 180W / 200W / 240W / 280W
- Luminous Flux
- 16,500 / 24,750 / 29,700 / 33,000 / 39,600 / 46,200 lm
- CRI
- > 70
- IP Rating
- IP65
Certifications & Compliance
Technical Data
Product Specifications
- Wattage
- 100W / 150W / 180W / 200W / 240W / 280W
- Luminous Flux
- 16,500 / 24,750 / 29,700 / 33,000 / 39,600 / 46,200 lm
- CRI
- > 70
- IP Rating
- IP65
- IK Rating
- IK08
- Input Voltage
- 100–240Vac, 50/60Hz
- Efficacy
- 165 lm/W
- Beam Angle
- 120°
- Mounting
- Hook Type
- 12
- 12123
Available Models
| Part Number | Wattage | CRI | Lumen | Dimension | Lifespan | Supply |
|---|---|---|---|---|---|---|
| LHB-A100PN5G | 100W | > 70 | 16,500 lm | Ø280 × H245 mm | 60,000 hrs | 100–240Vac |
| LHB-A150PN5G | 150W | > 70 | 24,750 lm | Ø280 × H245 mm | 60,000 hrs | 100–240Vac |
| LHB-A180PN5G | 180W | > 70 | 29,700 lm | Ø325 × H260 mm | 60,000 hrs | 100–240Vac |
| LHB-A200PN5G | 200W | > 70 | 33,000 lm | Ø325 × H260 mm | 60,000 hrs | 100–240Vac |
| LHB-A240PN5G | 240W | > 70 | 39,600 lm | Ø325 × H260 mm | 60,000 hrs | 100–240Vac |
| LHB-A280PN5G | 280W | > 70 | 46,200 lm | Ø325 × H260 mm | 60,000 hrs | 100–240Vac |
